With the continuous advancement of technology, 200 amp scr are widely used in various fields. However, there are some basic steps and precautions to follow when using this device. This article will introduce the concept, properties, and characteristics of 200 amp scr and explain its application in various fields. Finally, it will summarize the matters needing attention when using 200 amp scr.

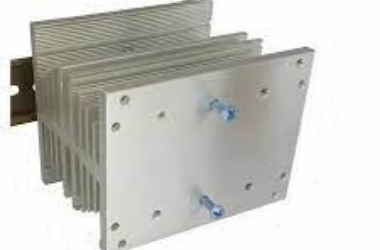

(200 amp scr)

The concept and properties of 200 amp scr

200 amp scr is a high-power thyristor with characteristics of high current, high voltage, and high heat resistance. It is a semi-controlled device that can control its switching state through control signals. It is widely used in power electronic equipment, such as switching power supplies, frequency converters, inverters, etc.

Application areas of 200 amp scr

  1. Power electronics field: As a high-power thyristor, 200 amp SCR is widely used in the power electronics field. It can be used in switching power supplies, frequency converters, inverters, and other equipment to achieve efficient and energy-saving power conversion.
  2. Industrial control field: In the industrial control field, 200 amp scr can be used to control the switches of motors, heaters, and other equipment to achieve high-precision and high-efficiency control.
  3. New energy fields: New energy fields such as solar and wind energy also require high-power electronic devices to achieve energy conversion and control. 200 amp SCR can be used in the control circuits of solar panels and wind turbines to improve energy utilization.

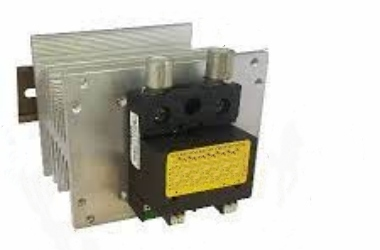

(200 amp scr)

Basic steps for using 200 amp scr

  1. Understand the parameters and characteristics of 200 amp scr: Before using 200 amp scr, you need to understand its parameters such as rated current, rated voltage, heat resistance, and other characteristics in order to select and use it correctly.
  2. Choose a suitable drive circuit: 200 amp scr requires a suitable drive circuit to control its switching state. Depending on the application’s needs, select a driver circuit compatible with 200 amp scr and ensure that it can provide sufficient trigger signal to turn the thyristor on and off.
  3. Configure an appropriate protection circuit: When using 200 amp scr, it is essential to configure an appropriate protection circuit to prevent overvoltage, overcurrent, and other abnormal conditions. This protects the thyristors from damage and ensures your system operates safely.
  4. Connect the load correctly: Connecting the 200 amp SCR to the appropriate load is one of the critical steps in using it. Ensure the load’s impedance matches the thyristor’s rating to avoid overcurrent or overvoltage conditions.
  5. Control of trigger signal: It is crucial to control the trigger signal of 200 amp scr. According to the application requirements, select the appropriate trigger method (such as optical trigger, electrical trigger, etc.) and ensure the stability and reliability of the trigger signal.

Things to note when using 200 amp scr

  1. Avoid switching the 200 amp scr frequently: Switching the thyristor on and off may cause it to overheat and shorten its service life. Therefore, try to avoid switching it on and off frequently during use.
  2. Ensure the operating environment is clean and dust-free: Thyristor is a semiconductor device with high operating environment requirements. Keep the operating environment clean to prevent damage to the thyristor.
  3. Pay attention to safe operation: Since 200 amp scr carries a large current and involves high voltage and high energy conversion, you need to pay attention to safe operation. Always turn off the power and take appropriate safety measures before operating.
(200 amp scr)


PDDN Photoelectron Technology Co., Ltd. is a high-tech enterprise focusing on the manufacturing, R&D, and sales of power semiconductor devices. Since its establishment, the company has been committed to providing high-quality, high-performance semiconductor products to customers worldwide to meet the needs of the evolving power electronics industry.

It accepts payment via Credit Card, T/T, West Union, and Paypal. PDDN will ship the goods to customers overseas through FedEx, DHL, by sea, or by air. If you are looking for high-quality 200 amp scr, please feel free to send us inquiries, and we will be here to help you.
