1. Material Principles and Crystal Chemistry
1.1 Composition and Polymorphic Framework
(Silicon Carbide Ceramics)
Silicon carbide (SiC) is a covalent ceramic substance composed of silicon and carbon atoms in a 1:1 stoichiometric ratio, renowned for its extraordinary hardness, thermal conductivity, and chemical inertness.
It exists in over 250 polytypes– crystal structures differing in piling sequences– amongst which 3C-SiC (cubic), 4H-SiC, and 6H-SiC (hexagonal) are one of the most highly relevant.
The strong directional covalent bonds (Si– C bond energy ~ 318 kJ/mol) lead to a high melting point (~ 2700 ° C), low thermal development (~ 4.0 × 10 ⁻⁶/ K), and superb resistance to thermal shock.
Unlike oxide ceramics such as alumina, SiC does not have a native glassy phase, contributing to its stability in oxidizing and corrosive environments as much as 1600 ° C.
Its wide bandgap (2.3– 3.3 eV, depending upon polytype) also grants it with semiconductor residential or commercial properties, enabling twin use in architectural and electronic applications.
1.2 Sintering Challenges and Densification Techniques
Pure SiC is very difficult to compress because of its covalent bonding and low self-diffusion coefficients, requiring using sintering help or innovative handling techniques.
Reaction-bonded SiC (RB-SiC) is created by penetrating permeable carbon preforms with liquified silicon, creating SiC sitting; this method yields near-net-shape parts with recurring silicon (5– 20%).
Solid-state sintered SiC (SSiC) makes use of boron and carbon ingredients to advertise densification at ~ 2000– 2200 ° C under inert environment, achieving > 99% academic thickness and remarkable mechanical homes.
Liquid-phase sintered SiC (LPS-SiC) employs oxide ingredients such as Al ₂ O THREE– Y TWO O SIX, creating a short-term liquid that boosts diffusion but might lower high-temperature stamina because of grain-boundary stages.
Hot pushing and trigger plasma sintering (SPS) offer quick, pressure-assisted densification with great microstructures, suitable for high-performance elements needing very little grain development.
2. Mechanical and Thermal Efficiency Characteristics
2.1 Stamina, Solidity, and Use Resistance
Silicon carbide porcelains show Vickers firmness values of 25– 30 Grade point average, second just to ruby and cubic boron nitride amongst design products.
Their flexural strength generally ranges from 300 to 600 MPa, with fracture strength (K_IC) of 3– 5 MPa · m 1ST/ TWO– moderate for porcelains but boosted with microstructural design such as whisker or fiber support.
The combination of high hardness and flexible modulus (~ 410 Grade point average) makes SiC remarkably resistant to rough and abrasive wear, outmatching tungsten carbide and solidified steel in slurry and particle-laden atmospheres.
( Silicon Carbide Ceramics)
In commercial applications such as pump seals, nozzles, and grinding media, SiC components show life span several times much longer than traditional options.
Its low thickness (~ 3.1 g/cm THREE) additional adds to wear resistance by lowering inertial forces in high-speed turning components.
2.2 Thermal Conductivity and Stability
Among SiC’s most distinct features is its high thermal conductivity– ranging from 80 to 120 W/(m · K )for polycrystalline forms, and as much as 490 W/(m · K) for single-crystal 4H-SiC– going beyond most metals other than copper and aluminum.
This home allows efficient heat dissipation in high-power digital substrates, brake discs, and heat exchanger components.
Combined with low thermal expansion, SiC displays exceptional thermal shock resistance, measured by the R-parameter (σ(1– ν)k/ αE), where high worths show resilience to quick temperature adjustments.

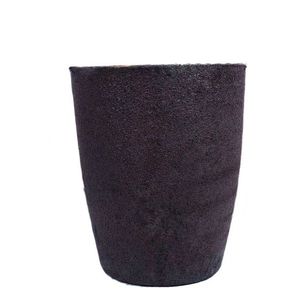

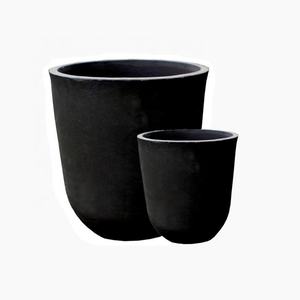

As an example, SiC crucibles can be heated up from area temperature to 1400 ° C in mins without cracking, a task unattainable for alumina or zirconia in similar conditions.
In addition, SiC keeps strength up to 1400 ° C in inert environments, making it optimal for heating system fixtures, kiln furnishings, and aerospace parts subjected to severe thermal cycles.
3. Chemical Inertness and Rust Resistance
3.1 Habits in Oxidizing and Minimizing Environments
At temperatures below 800 ° C, SiC is highly steady in both oxidizing and lowering environments.
Over 800 ° C in air, a safety silica (SiO TWO) layer forms on the surface area using oxidation (SiC + 3/2 O TWO → SiO ₂ + CARBON MONOXIDE), which passivates the product and reduces further destruction.
However, in water vapor-rich or high-velocity gas streams above 1200 ° C, this silica layer can volatilize as Si(OH)₄, leading to sped up recession– a crucial consideration in wind turbine and combustion applications.
In minimizing environments or inert gases, SiC remains secure approximately its decay temperature level (~ 2700 ° C), without stage changes or strength loss.
This stability makes it appropriate for molten metal handling, such as aluminum or zinc crucibles, where it resists wetting and chemical strike far much better than graphite or oxides.
3.2 Resistance to Acids, Alkalis, and Molten Salts
Silicon carbide is practically inert to all acids other than hydrofluoric acid (HF) and strong oxidizing acid mixtures (e.g., HF– HNO FIVE).
It reveals excellent resistance to alkalis up to 800 ° C, though prolonged exposure to molten NaOH or KOH can cause surface etching by means of development of soluble silicates.
In liquified salt atmospheres– such as those in concentrated solar energy (CSP) or nuclear reactors– SiC demonstrates premium deterioration resistance contrasted to nickel-based superalloys.
This chemical effectiveness underpins its use in chemical procedure tools, including shutoffs, liners, and warmth exchanger tubes dealing with hostile media like chlorine, sulfuric acid, or salt water.
4. Industrial Applications and Arising Frontiers
4.1 Established Uses in Energy, Protection, and Production
Silicon carbide porcelains are essential to many high-value industrial systems.
In the energy field, they serve as wear-resistant linings in coal gasifiers, components in nuclear gas cladding (SiC/SiC compounds), and substratums for high-temperature strong oxide fuel cells (SOFCs).
Protection applications include ballistic armor plates, where SiC’s high hardness-to-density proportion offers premium security against high-velocity projectiles compared to alumina or boron carbide at lower price.
In production, SiC is used for precision bearings, semiconductor wafer dealing with components, and rough blowing up nozzles as a result of its dimensional stability and purity.
Its use in electric lorry (EV) inverters as a semiconductor substrate is swiftly expanding, driven by effectiveness gains from wide-bandgap electronic devices.
4.2 Next-Generation Dopes and Sustainability
Recurring research study concentrates on SiC fiber-reinforced SiC matrix compounds (SiC/SiC), which exhibit pseudo-ductile actions, improved sturdiness, and preserved toughness over 1200 ° C– suitable for jet engines and hypersonic automobile leading sides.
Additive manufacturing of SiC by means of binder jetting or stereolithography is advancing, enabling complex geometries previously unattainable through conventional developing approaches.
From a sustainability point of view, SiC’s longevity minimizes replacement regularity and lifecycle exhausts in commercial systems.
Recycling of SiC scrap from wafer slicing or grinding is being created via thermal and chemical recovery procedures to redeem high-purity SiC powder.
As industries push toward greater effectiveness, electrification, and extreme-environment operation, silicon carbide-based ceramics will certainly continue to be at the leading edge of innovative products design, bridging the space between structural durability and useful versatility.
